Starter sets

You are not sure which assembly components are needed for you machine? Then our beginner-friendly starter sets are just what you are looking for.

Attention: Lubricator is not included! Please order lubricator seperately.

Direct installation

The best option for installing single-point lubricant dispensers is direct installation at the lubrication point. Lubrication nipple out, reducer in (if needed) and directly attach the lubrication dispenser.

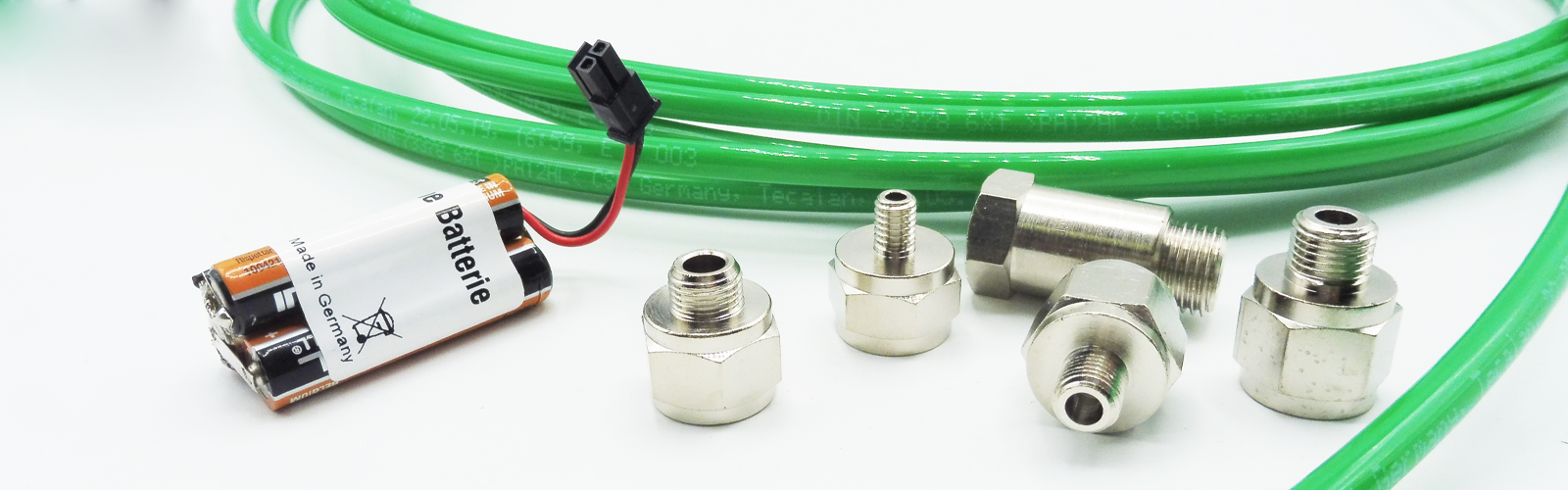

Lubricus S-B

Starter set

Suitable for
Lubricus-S-B
incl. power supply (1 item)
Lubricus S battery (LAT-BAT-SA)
Scope of delivery (each 1 item)
Reducer G1/4″ x G1/8″ (SAT1020)
Reducer G1/4″ x M6 (SAT1022)
Reducer G1/4″ x M8x1 (SAT1024)
Reducer G1/4″ x M10x1 (SAT1026)
Thread adapter M16x1,5 x G1/4″ (LAT1099)
Art. no.
LUB-S-B-Set-DM

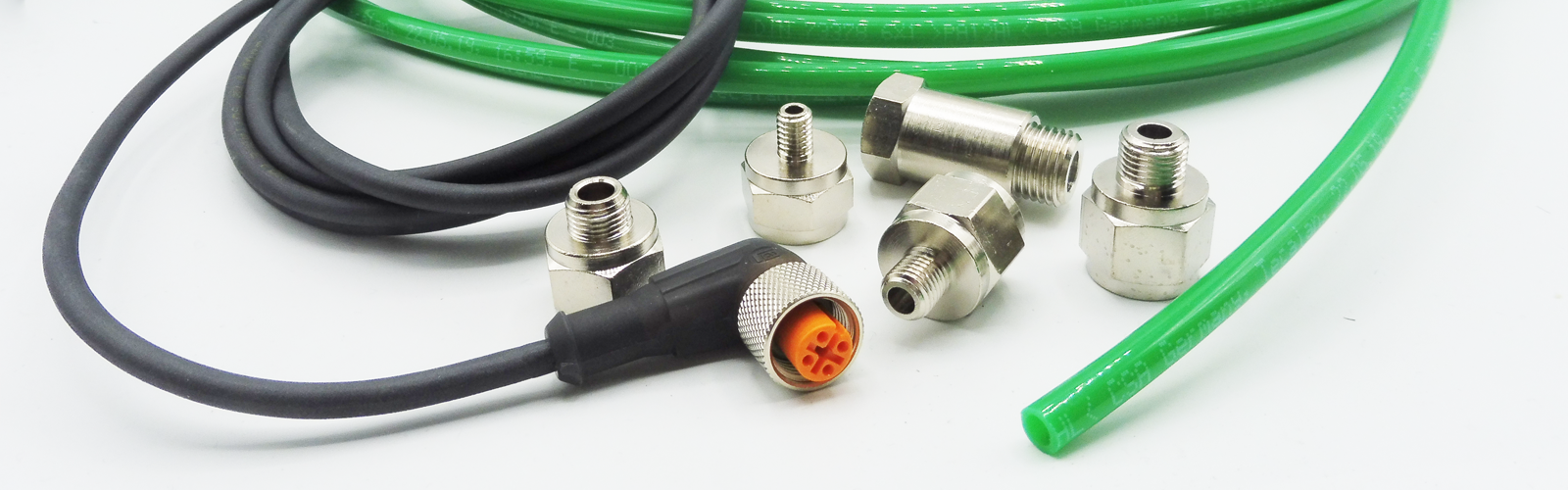

Lubricus S-V

Starter set

Suitable for
Lubricus-S-V
incl. power supply (1 item)
Connection cable M12x1, 5 m (LAT-WI-0-5-G)
Scope of delivery (each 1 item)
Reducer G1/4″ x G1/8″ (SAT1020)
Reducer G1/4″ x M6 (SAT1022)
Reducer G1/4″ x M8x1 (SAT1024)
Reducer G1/4″ x M10x1 (SAT1026)
Thread adapter M16x1,5 x G1/4″ (LAT1099)
Art. no.
LUB-S-V-Set-DM

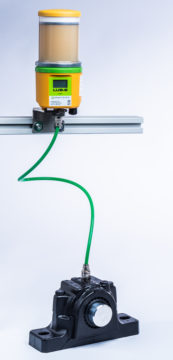

Indirect installation

If direct installation is not possible for structural reasons, the lubricant dispensers can be installed indirectly. Our indirect installation starter sets include appropriate connectors, hose adapters and hoses to match the type of system.

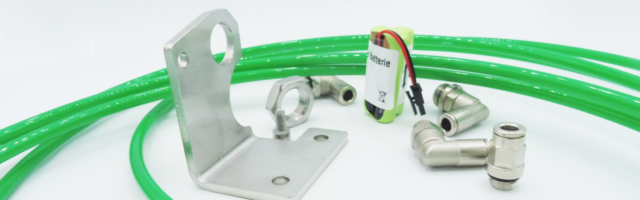

Lubricus S-B

Starter set

Suitable for
Lubricus-S-B
incl. power supply (1 item)
Lubricus S battery (LAT-BAT-SA)
Scope of delivery (each 1 item)
Bracket for Lubricator (LAT8803)
High pressure hose 5 m (LAT8002)
Hose connector M10x1 (LAT7087)
Hose connector M6 (LAT7084G)
Hose connector M10x1 (LAT7087G)
Hose connector G1/8″ (LAT7076G)
Hose connector G1/4″ (LAT7079G)
Art. no.
LUB-S-B-Set-IM

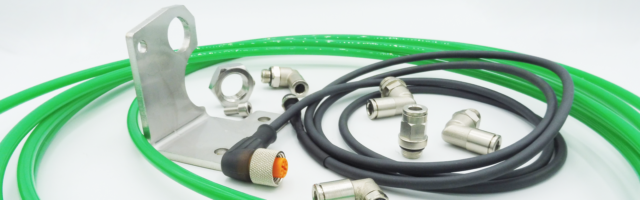

Lubricus S-V

Starter set

Suitable for
Lubricus-S-V
incl. power supply (1 item)
Connection cable M12x1, 5 m (LAT-WI-0-5-G)
Scope of delivery (each 1 item)
Bracket for Lubricator (LAT8803)
High pressure hose 5 m (LAT8002)
Hose connector M10x1 (LAT7087)
Hose connector M6 (LAT7084G)
Hose connector M10x1 (LAT7087G)
Hose connector G1/8″ (LAT7076G)
Hose connector G1/4″ (LAT7079G)
Art. no.
LUB-S-V-Set-IM

Lubricus starter sets are available for the models Lubricus B and Lubricus V and include not only four hose connectors but also 2 x 2 m high pressure hoses. The power supply is either 24 VDC or a battery pack, depending upon the model (LUB-B/LUB-V).

Lubricus B

Starter set

Suitable for
Lubricus-B-1 & B-2
incl. power supply (1 item)
Lubricus battery (LAT-BAT-4)
Scope of delivery (each 2 items)
2 m hose (Ø 4 / 6 mm) (LAT8002)
Hose connector, angled, M6 (LAT7084G)
Hose connector, angled, M10x1 (LAT7087G)
Hose connector, angled, G1/8ʺ (LAT7076G)
Hose connector, angled, G1/4ʺ (LAT7079G)
Art. no.
LUB-Set-B

Lubricus V

Starter set

Suitable for
Lubricus-V-1 und V-2
incl. power supply (1 item)
Connection cable M12x1, 10 m (LAT-WI-0-10)
Scope of delivery (each 2 items)
2 m hose (Ø 4 / 6 mm) (LAT8002)
Hose connector, angled, M6 (LAT7084G)
Hose connector, angled, M10x1 (LAT7087G)
Hose connector, angled, G1/8ʺ (LAT7076G)
Hose connector, angled, G1/4ʺ (LAT7079G)
Art. no.
LUB-Set-V

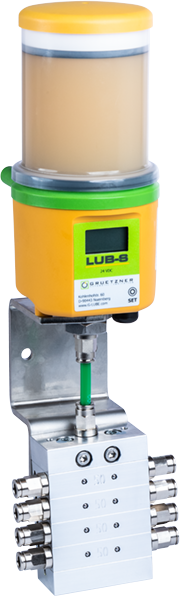

Progressive distributor sets

To enable multipoint lubrication, progressive distributor sets suiting Lubricus S-V are available. Those sets consist of a progressive distributor (which can be chosen here from 2 to 10 outlets), a special mounting bracket, a small piece of high-pressure hose and a hose connector. The sets are assembled completely and all components are pre-filled with lubricant.

Lubricus S-V

Progressive distributor set

Suitable for
Lubricus S-V
Scope of delivery (each 1 item)
Bracket for Lubricator (LAT8804)
High pressure hose 5 m (LAT8002)
Hose connector, M10x1 (LAT7087)
Progressive distributor
Art. no.
LUB-S-V-Set-PRV
