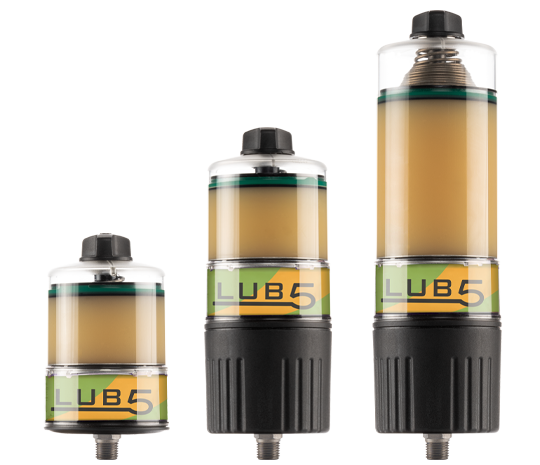

Lub5 models

In addition to the basic model two more models are available: Lub5-120 PLUS masters difficult conditions and Lub5-250 provides an extra large filling volume.

Lub5-120

Drive
electromechanical
Operating pressure
max. 10 bar (145 psi)
Distribution period
1 / 3 / 6 / 12 / 24 months
Lubricant volume
120 ml
Discharges
max. 5 (=600 ml)
Lubricating medium
oils and greases up to NLGI 2
Operating temperature
-20 °C to +60 °C
Working voltage
3.0 V (Li battery)
Battery capacity
Standard
Weight empty
~ 314 g
Dimensions (height x Ø)
127 x 70 mm
Performance monitoring
green/red LED
Art. no.
LUB5-00
3D drawing

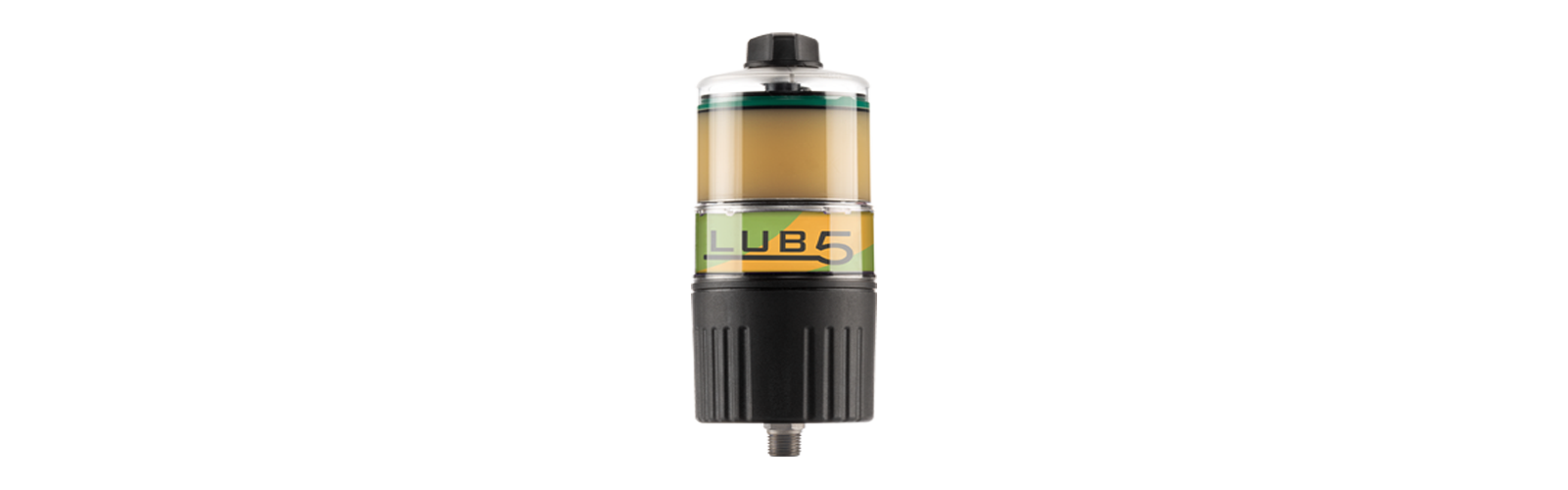

Lub5-120 PLUS

Drive
electromechanical
Operating pressure
max. 10 bar (145 psi)
Distribution period
1 / 3 / 6 / 12 / 24 months
Lubricant volume
120 ml
Discharges
max. 5 (=600 ml)
Operating temperature
-20 °C to +60 °C
Working voltage
3.0 V (Li battery)
Battery capacity
Triple (suited for high counterpressure and low temperatures)
Weight empty
~ 490 g
Dimensions (height x Ø)
182 x 70 mm
Performance monitoring
green/red LED
Art. no.
LUB5-00-120 Plus
3D drawing

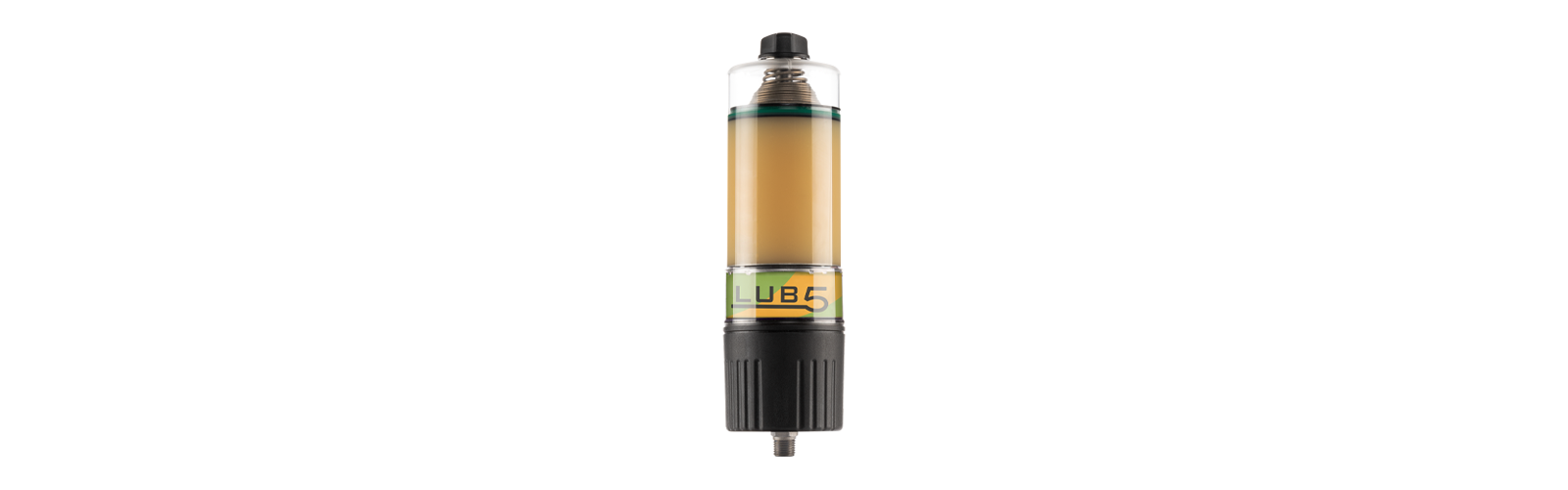

Lub5-250

Drive
electromechanical
Operating pressure
max. 10 bar (145 psi)
Distribution period
1 / 3 / 6 / 12 / 24 months
Lubricant volume
250 ml
Discharges
max. 5 (=1250 ml)
Lubricating medium
oils and greases up to NLGI 2
Operating temperature
-20 °C to +60 °C
Working voltage
3.0 V (Li battery)
Battery capacity
Standard
Weight empty
~ 558 g
Dimensions (height x Ø)
243 x 70 mm
Performance monitoring
green/red LED
Art. no.
LUB5-00-250
3D drawing
