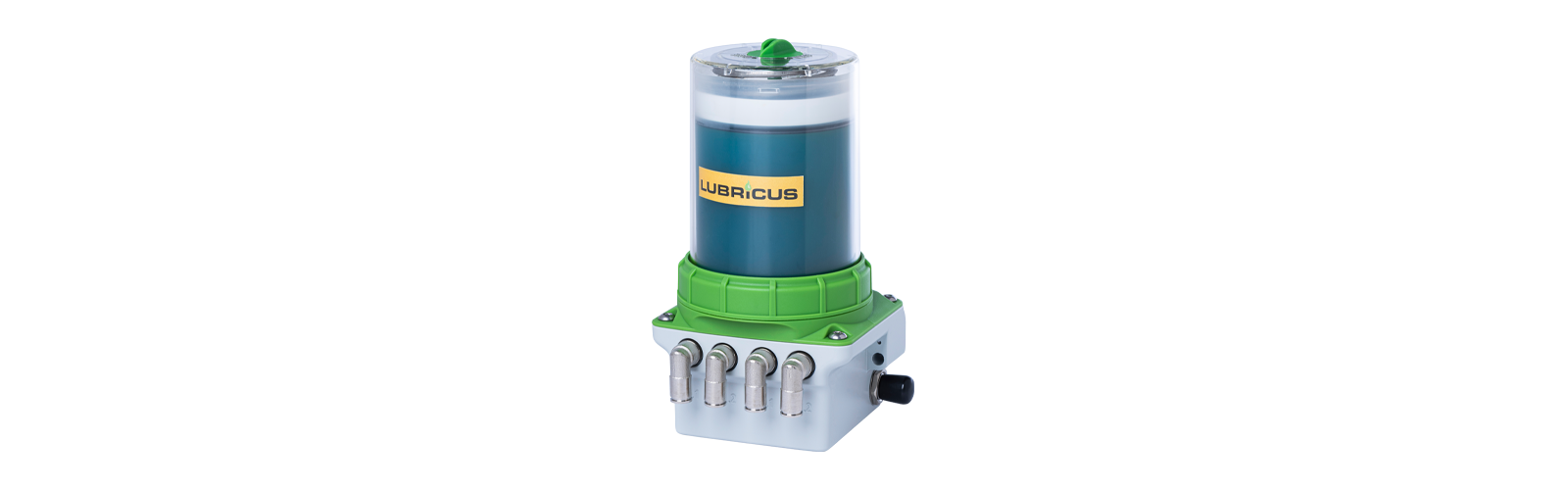

Lubricus

Innovative, flexible, adaptable

Lubricus offers a new portal to the world of automatic lubrication. With the highly versatile Lubricus lubrication system, both single lubrication points and a whole group of varied points can be provided with lubricant continuously over a long period of time.

Flexible lubrication

The Lubricus lubrication system is an extremely compact lubrication unit for oils and greases up to NLGI class 2. The lubrication system works either autonomously with a battery back or using an external voltage supply (24 VDC).

Dependent on the version, Lubricus has up to four outlets and is thus optimally suited for uses with multiple lubricating points.

Lubricus is suitable for the simple and reliable supply of lubrication to bearings, linear guides, chains and open tooth systems, for which special lubricating pinions and lubricating gearwheels are available.

Due to the compact dimensions, the  Lubricus is optimally suited for upgrades or retrofitting.

Models

Basic model
Battery driven
1 or 2 outlets
Running time 1-36 months
Basic model
External power supply (24 VDC)
1 or 2 outlets
Running time 1-36 months
(intermittent operation possible)
External control (PLC)
External power supply (24 VDC)
1 to 4 outlets
Running time individually adjustable
Lubricus Controller required
Central monitoring is possible
External power supply (24 VDC)
1 to 4 outlets
Running time individually adjustable
Extremely compact
Battery or external power supply (24 VDC)
1 outlet
Running time 1-24 months
Time mode or pulse control
External power supply (24 VDC)
2, 4, 6, 8 or 10 outlets
Extra large cartridge (1500 cm³)
Running time individually adjustable

Your benefits

  • Transport of oil and grease up to NLGI class 2
  • Connection to machinery control possible
  • Delivery pressure up to 70 bar (1015 psi)
  • Fault/empty reporting
  • Operating temperature range -15 °C to +70 °C
  • Temperature-independent feed rate
  • Visual inspection possible at any time

Quick check

During operation Lubricus measures the back-pressure at the lubricating point. The result is output to the display in just a few seconds – simple and without any additional effort.
