Lubricus C & Controller

An innovative approach for a wide variety of applications incl. monitoring

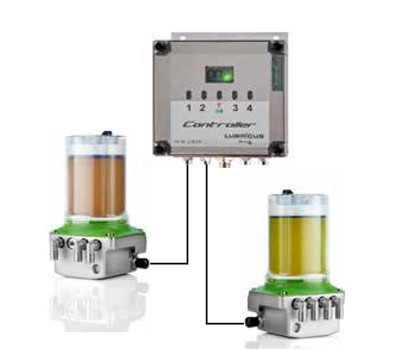

The Lubricus Controller is used for external monitoring of Lubricus, to which up to four Lubricus lubrication systems (4 outlets each = 16) can be connected. The connected Lubricus lubricating devices can be individually controlled and monitored using the Lubricus Controller. The dialogue takes place via a simple to operate LCD display.

Your benefits

  • Lubricating units are attached close to the actual lubricating points
  • Central monitoring is possible (e.g. PLC)
  • Individual supply volumes possible
  • Monitoring of up to 16 lubrication points
  • Electronics and monitoring components can be installed in a user-friendly environment
  • Art. no. LUB-C-1, LUB-C-2, LUB-C-3, LUB-C-4, LUB-C-1-1 (2 outlets controlled independently of another)
3D drawings

Lubricus Controller

The  Lubricus Controller monitors and controls four  Lubricus lubricating devices, which in turn supply a varying number of lubricating points. The paths which the lubricant must travel over in the lines can be kept simple and short, nevertheless central monitoring takes place via the Lubricus Controller. The installation and maintenance requirements are sustainably reduced.

3D drawings Controller

Installation example

Application pictures
