G-LUBE Filter

Why use air filters?

Ventilation dryers are installed on hydraulic and lubrication system containers to prevent the ingress of solid particles and moisture during the ventilation of the systems.

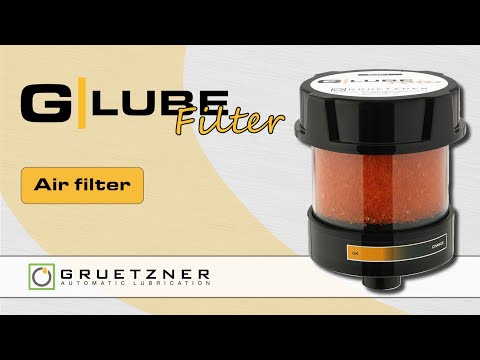

By clicking the play button you are accessing content from YouTube, a service provided by an external third party. YouTube privacy policy

Fluid containers in hydraulic and lubrication systems are at risk of contamination by undesirable air pollutants. These undesirable air pollutants cause and accelerate the oil’s oxidation.

Altered oil properties, such as a reduced load-bearing capacity and lower temperature resistance, are the result. Water ingress may also lead to acid formation and subsequent corrosion forming on various component surfaces.

Frequent oil and filter changes, equipment failures and shortened installation lifetimes lead to higher maintenance budgets.

Advantages

The G-LUBE filter prevents any contamination of the base fluid. You will benefit from …

  • less machine downtime
  • longer equipment life
  • time savings
  • lower lubricant consumption
  • fewer oil changes
  • environmentally-friendly silica gel

Models

G-LUBE Filter M

Dimensions (Ø x height)
14,1 x 14,0 cm
Silica gel volume
440 g
Maximum absorption capacity
160 ml
Maximum airflow
34 m³/h
Maximum displacement volume
682 l/min
Art. no.
GLF-M
2D drawing 3D drawing

G-LUBE Filter L

Dimensions (Ø x height)
14,1 x 17,2 cm
Silica gel volume
660 g
Maximum absorption capacity
279 ml
Maximum airflow
34 m³/h
Maximum displacement volume
682 l/min
Art. no.
GLF-L
2D drawing 3D drawing

G-LUBE Filter XL

Dimensions (Ø x height)
14,1 x 26,1 cm
Silica gel volume
1.320 g
Maximum absorption capacity
538 ml
Maximum airflow
34 m³/h
Maximum displacement volume
682 l/min
Art. no.
GLF-XL
2D drawing 3D drawing

Design

  1. Electret filter
    Removes dirt, dust, and undesirable particles from the air (particle size > 2 microns)
  2. Activated carbon filter
    Filters oil from the ambient air
  3. Desiccant
    Absorbs moisture from the incoming air. The absorbed moisture darkens the granules over time.
  4. Baffle plate
    Protects the silica gel from oil mists
  5. Absorption filter for oil
    Absorbs oil mists from the oil tank

Adaptors

Attach G-LUBE filter with a suitable adaptor! Adaptors are available in metric and NPT versions.

3/8″

Adaptor for G-LUBE Filter

Thread
3/8″
Material
Galvanized steel
Art. no. metric version
GLF-AD-PT-3/8
Art. no. NPT version
GLF-AD-NPT-3/8
3D drawing

1/2″

Adaptor for G-LUBE Filter

Thread
1/2″
Material
Galvanized steel
Art. no. metric version
GLF-AD-PT-1/2
Art. no. NPT version
GLF-AD-NPT-1/2
3D drawing

1″

Adaptor for G-LUBE Filter

Thread
1″
Material
Galvanized steel
Art. no. metric version
GLF-AD-PT-1
Art. no. NPT version
GLF-AD-NPT-1
3D drawing

Application pictures
