Brushes

Thanks to the broad range of brush accessories, the lubrication dispensers can be ideally and professionally installed on the corresponding chain applications with round or square brushes. Exact dosage and precise feed substantially decrease lubricant consumption.

Square brushes

Top feeding

Square brush 25 mm

Width
25 mm
Length of bristles
22 mm
Thread
R1/4″ top
Material
Aluminium / polyamide
Art. no.
SAT2038

Lateral feeding

Square brush 25 mm

Width
25 mm
Length of bristles
20 mm
Thread
R1/4″ lat.
Material
Aluminium / polyamide
Art. no.
SAT2038S

Top feeding

Square brush 40 mm

Width
40 mm
Length of bristles
20 mm
Thread
R1/4″ top
Material
Aluminium / polyamide
Art. no.
SAT2035

Lateral feeding

Square brush 40 mm

Width
40 mm
Length of bristles
20 mm
Thread
R1/4″ lat.
Material
Aluminium / polyamide
Art. no.
SAT2035s

Top feeding

Square brush 70 mm

Width
70 mm
Length of bristles
20 mm
Thread
R1/4″ top
Material
Aluminium / polyamide
Art. no.
SAT2036

Lateral feeding

Square brush 70 mm

Width
70 mm
Length of bristles
20 mm
Thread
R1/4″ lat.
Material
Aluminium / polyamide
Art. no.
SAT2036s

Top feeding

Square brush 100 mm

Width
100 mm
Length of bristles
20 mm
Thread
R1/4″ top
Material
Aluminium / polyamide
Art. no.
SAT2037

Lateral feeding

Square brush 100 mm

Width
100 mm
Length of bristles
20 mm
Thread
R1/4″ lat.
Material
Aluminium / polyamide
Art. no.
SAT2037s

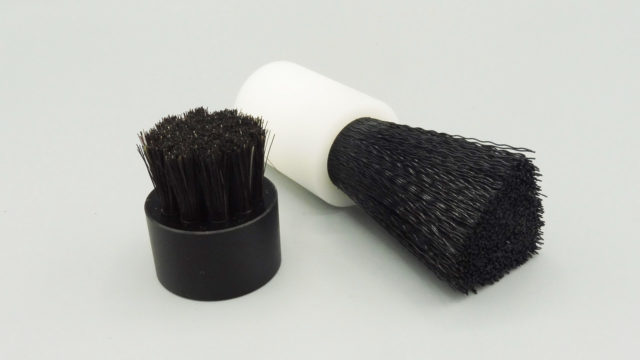

Round brushes

Length of bristles 15 mm

Round brush

Diameter
25 mm
Length of bristles
15 mm
Thread
R1/4″ top
Material
Polyamide
Art. no.
SAT2041

Length of bristles 45 mm

Round brush

Diameter
25 mm
Length of bristles
45 mm
Thread
R1/4″ top
Material
Polyamide
Art. no.
SAT2034

for SAT2034 (not included)

Bracket for round brush

Diameter
28 mm
Material
Plastic
Art. no.
SAT2013

High temperature brushes

Top feeding

High temperature round brush

Diameter
25 mm
Length of bristles
45 mm
Thread
G1/4″ top
Material
Brass / stainless steel
Operating temperature range
max. +300 °C
Art. no.
SAT2034-HT

Top feeding

High temperature square brush 57 mm

Width
57 mm
Length of bristles
28 mm
Thread
G1/4″ top
Material
Stainless steel
Operating temperature range
max. +300 °C
Scope of delivery
incl. reducer SAT1020
Art. no.
SAT2036-HT
