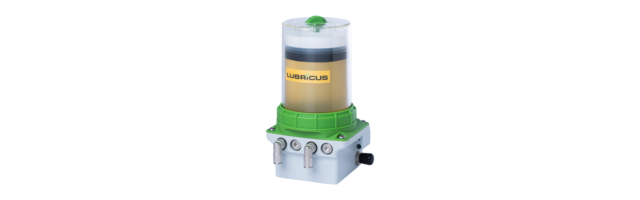

Lubricus D

Highest possible degree of control

Lubricus D is designed for an external control and 24 VDC voltage supply. Depending on the model, the Lubricus lubrication system type D has 1, 2, 3 or 4 outlets. A connection to the PLC is required.

Lubricus D is particularly suited for units in which lubrication must be synchronised with the operating period of the machine, or where specific lubrication cycles at prescribed intervals are needed.

The feed pump in Lubricus D  provides lubricant to the outlets via PLC according to the activation of pump outputs. In this way a highly precise dose amount of lubricant can be obtained. The user has the highest possible degree of control over the frequency of lubrication and the size of the lubricant dose.

Technical data

Technical data sheet 250 ml
3D drawings 250 ml
Technical data sheet 400 ml
3D drawings 400 ml

Lubricus D

Drive
electromechanical (reusable)
Number of outlets
1-4
Operating pressure
max. 70 bar (1015 psi)
Distribution period
pause time (individually adjustable)
Lubricant volume
250 ml, 400 ml
Lubricating medium
oils and greases up to NLGI 2
Operating temperature
-15 °C to +70 °C
Working voltage
24 VDC
Weight empty
from ~1279 g
Dimensions (WxHxD)
250 ml: 112 x 165 x 94 mm
400 ml: 112 x 196 x 94 mm
Performance monitoring
display, green/red LED
Control
pulse control
Operation
control using PLC
Distributor possible
yes
Art. no.
LUB-D
